Agricultural ladder for garden which is normally using for apple picking,leaf cutting and so on.
Detail:
1.Using Alloy&temp 6063-T5 aluminum profile with hardness HW12.

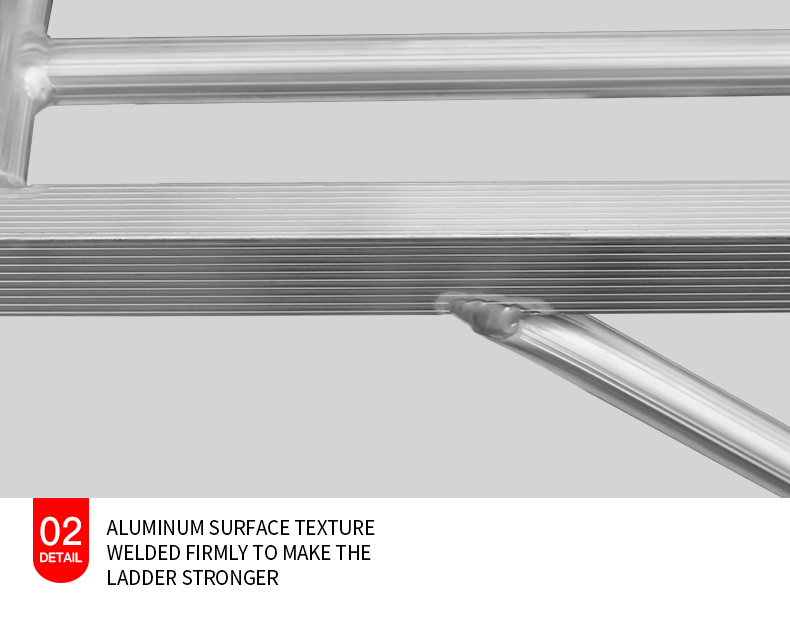

2.Full welding on each connection by worker.
3. 3 tubes together for reinforce main pillar

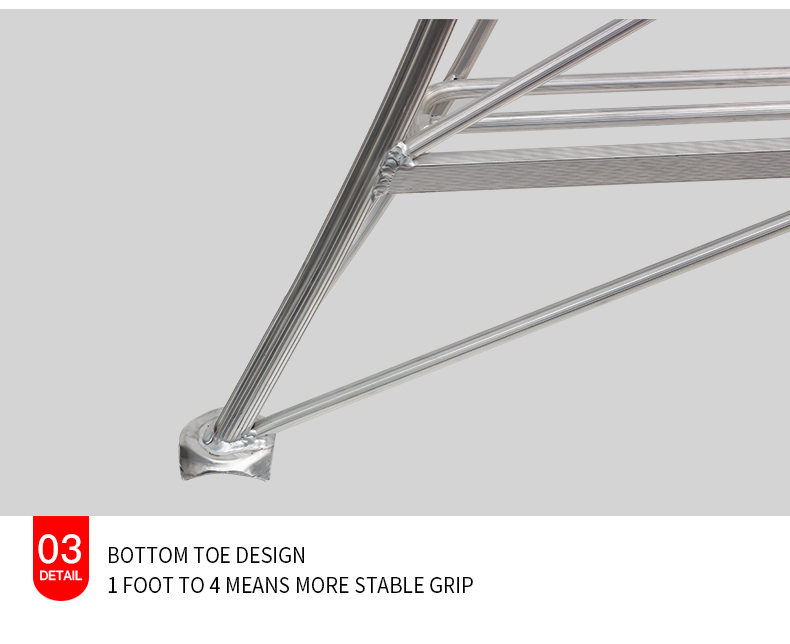

4.Lotus feet for more stable standing
5.Hight load-bearing

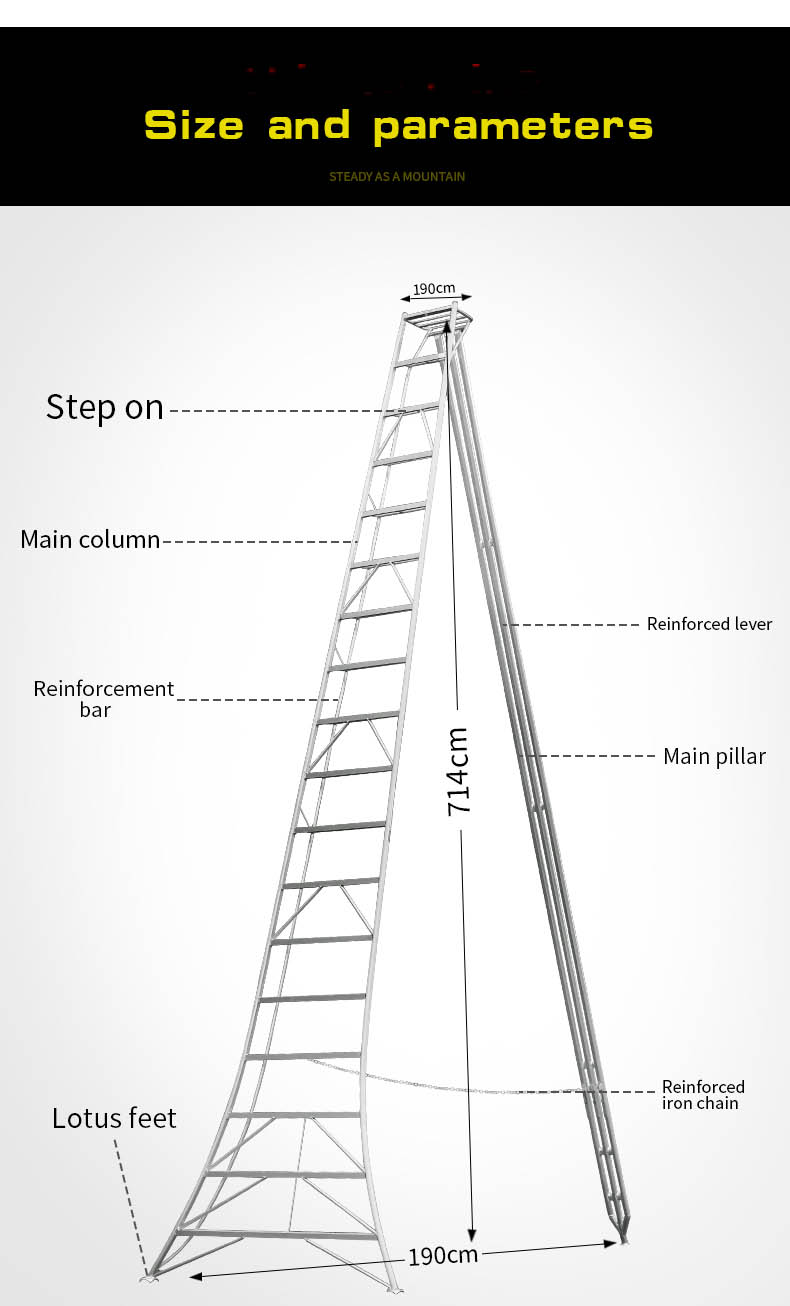

6.Size we can make
Pedal spacing
(cm)
Model No.
Total steps
Volume（m3）
Folding height（cm）
Maxload（kg）
Weight (kg)
Packing size(cm/pc）
114B3
3
34
0.12
102
150
3.55
102*(42+75)/2*20
114B4
4
34
0.18
136
150
4.55
136*（42+95)/2*20
114B5
5
34
0.23
170
150
6
170*(42+95)/2*20
114B6
6
34
0.34
204
150
7.45
204*(42+125)/2*20
114B7
7
34
0.39
238
150
8
238*(42+125)/2*20
114B8
8
34
0.45
272
150
8.8
272*(42+125)/2*20
114B9
9
34
0.51
306
150
10
306*(42+125)/2*20
114B10
10
34
0.64
340
150
11.3
340*(42+147)/2*20
114B11
11
34
0.7
374
150
12.5
374*(42+147)/2*20
114B12
12
34
0.77
408
150
14.3
408*(42+147)/2*20
114B13
13
34
0.88
442
150
21.65
442*(39+160)/2*20
114B14
14
34
0.95
476
150
22.95
476*(39+165)/2*20
114B15
15
34
1.07
510
150
24.5
510*(39+170)/2*20
114B18
18
34
1.35
612
150
28.5
612*(39+180)/2*20
114B21
21
34
1.64
714
150
35.1
714*(39+190)/2*20
